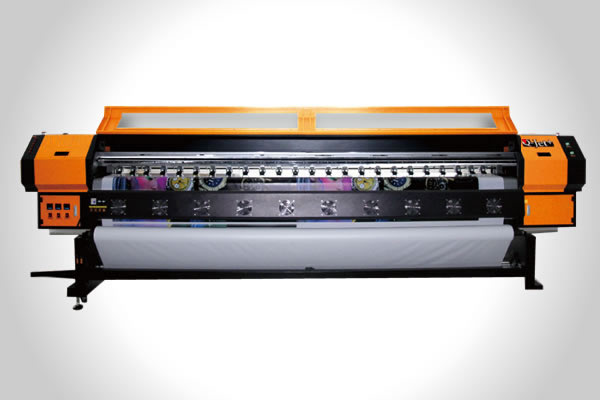

Total-Jet: Q plus series
(Konica KM1024 or Epson DX5 Print Heads)
|
 |
 |
| ．High quality model: 720 x 1440 dpi 60m²/hr |
| ．Production model: 360 x 1440 dpi 120m²/hr |
| ．High speed model: 360 x 720 dpi 170m²/hr |
|
|
|
Q+-Jet Plus 12 modification!
Compatibly accompany with variable printheads,comprehensively includes Konica 1024 & EPSON DX5
Maximum loading 8 KONICA 1024 Printheads
Add the LED lights
The pinch roller becomes wider
Aluminous crossbeam
Grand pre-heating plate,IR heating stably
Release system changes to three-axes synchronous, and adds some guide roll for release &take up.
Heavy frame, more beautiful
Carriage can be rose up and down by manual operation
The print flattable becomes wider, it use to be 115 mm, and now turn to 200 mm
Works with AC motor, encoder transform exactly to print, improve the resolution in a certain degree
A new protect system/installation for the night moisturizing.
|
| |
Total-Jet: Q plus series
|
| Print head |
|
Konica 1024 High resolution printhead:42pl / 14pl / 6pl(Optional)
Auto anti-clogged flash head maintenance system
EPSON DX5 printhead
|
|
| Charging method |
|
Three-axes synchronous, Release cloth without motor,
Optional tension system for release & take up |
|
| Media |
|
| Modalities: |
R2R media |
| Specification: |
max width 3.2 meter
unlimited length |
| Classifications: |
Soft material, including PE PP ABS PU Vinyl, banner and PvC, etc. |
|
|
| Inks |
|
Konica Certification(Solvent Ink, Eco-solvent Ink, Sublimation Ink) |
| Print format |
|
PDF、PS、EPS、TIFF、AI,etc. (RGB/CMYK) |
| RIP |
|
PhotoPrint Edition version/Ultra Print/ONYX X10
|
| Environment & power |
|
Temperature:
|
20-30℃ |
| Humidity: |
45-75%RH |
| Gross power: |
220v 15A |
|
| Format dimensions |
|
L X W X H (mm): 4700 x 1100 x 1680mm |
| Weight |
|
650KG |
|
|
|
| |
| |
Stable & Simple
with Quality |
|
|
| |
|
|
|
|
|
| |
|
|
