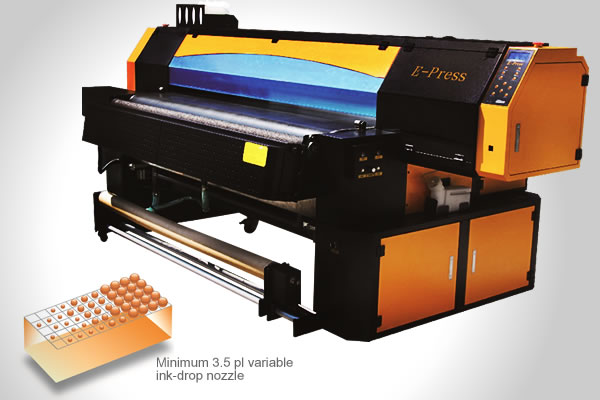

Total-Jet: E-Press series
(4pcs Epson DX5 Print Heads)
|
 |
 |
| ．High quality model: 720 x 1440 dpi (4PASS) 12m²/hr |
| ．Production model: 360 x 1440 dpi (4PASS) 48m²/hr |
．High speed model: 360 x 720 dpi (2PASS) 80m²/hr
|
|
|
|
High quality digital print
Maximum output 1440dpi, high clear images
Dedicated digital print color soft enables output color more gorgeous |
|
Suit for multiple fabrics
Reactive ink, acid ink, pigment ink, sublimation ink,disperess ink
4 color or 8 color ink optional
Adapt to cotton, silk, linen, wool, nylon, polyester and other printing materials |
|
High-speed print output
Delivery quality produce speed 32 m²/hr, hightest output
speed up to 50m²/hr |
|
Agglutinant & non-tension belt system for transporting fabric
Fit for knitting fabric (tension and non-tension) & woven fabric print |
| |
|
|
Automatic belt clean & dry installation
Keep dry of the belt always in order to support print |
| |
Stable & Simple
with Quality |
|
Infrared heating installation
Quickly dry the printed fabric, no sticky color, no cross color |
| |
|
Total-Jet: E-Press series
|
| Print head |
|
4 EPSON DX5 print head
Minimum 3.5 pl variable ink-drop nozzle
Absorb ink automatically, ink stack protect system self-provided
|
|
| Charging method |
|
Release cloth automatically, optional tension system can be chosen
Automatic belt clean & dry installation
Infrared heating installation |
|
| Media |
|
| Modalities: |
R2R media |
| Specification: |
max width 1.6 meter, unlimited length |
| Classifications: |
cotton, silk, wool, cashmere, polyester、
chinlon and other chemical fiber fabrics |
|
|
| Inks |
|
4 colors, 6 colors, 8 colors optional, support with reactive, acid, pigment and sublimation ink |
| Print format |
|
PDF、PS、EPS、TIFF、AI,etc. (RGB/CMYK) |
| RIP |
|
Tex print、seeget
|
| Environment & power |
|
Temperature:
|
20-30℃ |
| Humidity: |
45-75%RH |
| Gross power: |
220v 25A |
|
| Format dimensions |
|
L X W X H (mm): 3000 x 1820 x 1900mm |
| Weight |
|
1000KG |
|
|
|
| |
|
|
| |
|
|
